How do you create a website wireframe in Illustrator?
Use simple rectangles and text to block out your logo, navigation, hero section, call to action and image placeholders. Work at actual size, align elements to your column guides, and keep the styling consistent with pale grey fills and thin black outlines. Group and duplicate repeated elements to save time.
Creating a Website Wireframe in Adobe Illustrator
Key takeaways
Build a clear page layout with simple boxes and readable labels.
Use actual size and column guides to judge proportions properly.
Create a hero headline with fixed-width text and a button underneath.
Copy styling quickly with the Eyedropper tool.
Make reusable image placeholders for a three-column thumbnail row.
A wireframe can look wonderfully unexciting: grey boxes and some type. Nice and simple. The important part is making it clear where the different bits of the page belong, without getting caught up in the finished design.
For this layout, we’re building a header with a logo and navigation, a large hero section with a headline and call to action, and three image placeholders underneath. Start with an artboard that already has your column guides in place. The thumbnail row will use a twelve-column grid.
1. Draw the logo placeholder
Grab the Rectangle tool and draw a box near the top-left of the page to represent the logo.
You could use a plain white box. I prefer a little grey in the fill, with a black, one-pixel stroke around the outside. That slight contrast makes it easier to distinguish the page elements from the white artboard.
Keep that styling consistent as you build:
Fill: off-white or very pale grey.
Stroke: black.
Stroke width: one pixel.
If you want a slightly grander name for these layout elements, call them page furniture in your next meeting. Keep a straight face. It’s a term borrowed from print, and it does sound rather professional.
Check proportions at actual size
Zooming out is handy when you need to see several artboards, but it’s not a great way to judge the size of a logo or a button. Something that seems perfectly reasonable at 50% can feel much too tall once you return to the intended scale.
Use View > Actual Size, or its shortcut:
Mac: Command + 1.
PC: Ctrl + 1.
Return to this view regularly. If the logo box now feels too tall, shorten it before carrying on.
Align the edges to columns
Your rectangles should start and finish on column edges. An element can span several columns and the gutters between them, but its outer edge shouldn’t finish halfway through a gutter.
Think column edge to column edge, rather than somewhere vaguely close. That applies to the logo, navigation, hero box and thumbnails.
2. Add labels and build the navigation
Select the Type tool, click once and type a simple label such as “Logo”. Move it inside the rectangle.
You don’t need to agonise over the exact label size. Around 16 pixels is a useful starting point, roughly equivalent to 12-point type, so it remains readable if you print the wireframe.
To create the navigation placeholder:
Use the black-arrow Selection tool and hold Shift to select both the logo rectangle and its label.
Copy and paste them using Edit > Copy and Edit > Paste.
Move the duplicate to the right-hand side of the header.
Resize the rectangle, keeping its edges aligned to the column grid.
Change the label to “Navigation” and position it inside the box.
The copy shortcuts are Command + C and Command + V on a Mac, or Ctrl + C and Ctrl + V on a PC.
Move small text without fighting it
Small labels can be fiddly to drag, especially when you’re zoomed out. You can end up grabbing an edge rather than moving the text.
Zoom in temporarily, or select the label and use the arrow keys to nudge it. Hold Shift while pressing an arrow key to move it in bigger increments. Once it’s positioned, return to actual size.
Toggle guides while you work
Column guides are brilliant for lining things up. They’re less brilliant when you want to see the layout without a forest of lines over it.
Use View > Guides > Hide Guides, or toggle their visibility with:
Mac: Command + semicolon.
PC: Ctrl + semicolon.
This becomes a useful little rhythm: guides on to align things, guides off to check the result.

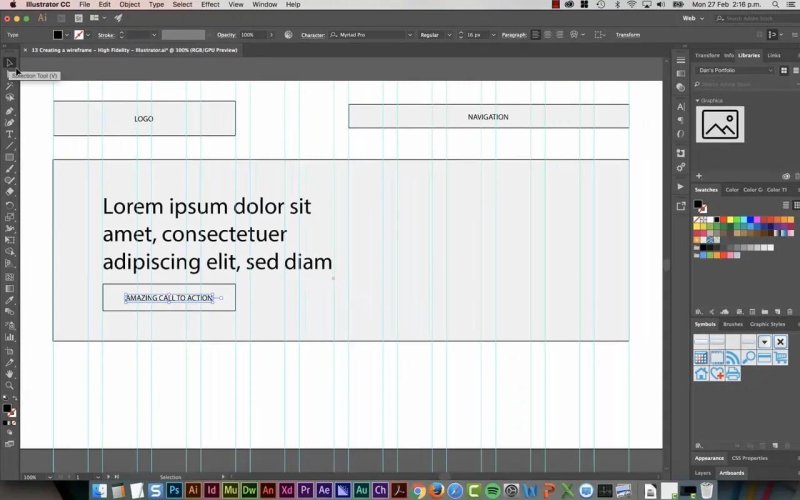

3. Create the hero section
Below the header, draw a large rectangle using the same pale fill and black outline. This is the hero box, the big introductory area that establishes who you are and what you do.
Some websites use rotating content here, but you don’t need to build that detail into this simple layout. For now, the large box marks out the space.
Use a fixed-width text box for the headline
Clicking once with the Type tool creates text that continues along a line as you type. That’s fine for a short label, but not what we want for a headline that wraps across several lines.
Instead, select the Type tool and click and drag a text box inside the hero area. Align its starting edge to a column guide. This creates fixed-width text, so the words wrap when they reach the right-hand edge.
Add placeholder text to establish the headline’s size and shape. It’s standing in for a large introductory message, perhaps an invitation to work with you.
Adjust the font size quickly
Select the text and use these shortcuts to test its size:
Make it larger: Command + Shift + full stop on Mac, or Ctrl + Shift + full stop on PC.
Make it smaller: Command + Shift + comma on Mac, or Ctrl + Shift + comma on PC.
The comma and full stop sit next to each other, which makes it easy to bump the size up and down until the headline feels right.
If hyphenation starts chopping up your headline, select the text and turn off Hyphenate in the Paragraph panel. Then adjust the font size if necessary so the visible text fits comfortably.
Finally, use the Selection tool to bring up the bottom edge of the text box, leaving only the height you need.
4. Add a call-to-action button
Draw a smaller rectangle underneath the hero headline. This is the call to action: the button that asks someone to buy something, contact you or take another next step.
A large introductory message followed by a button is a familiar layout. We’re marking out that relationship here, not finishing the button’s visual design.
Copy the styling with the Eyedropper tool
Your new rectangle might inherit a black fill and no outline. Rather than resetting everything manually:
Leave the new button rectangle selected.
Select the Eyedropper tool.
Click an existing placeholder, such as the navigation rectangle.
The button picks up the existing object’s appearance, giving it the same fill and stroke.
Copy and paste an existing label, move it into the button, and change the wording. A straightforward label such as “Call to action” is enough for this stage. You can make it sound amazing while you’re working, but I’d keep the wording professional before sending it to a client.
The headline and button establish the main message and the next action.
5. Make room for the thumbnail row
We’re adding three thumbnails underneath the hero section. Each will span four columns, making up the full twelve-column grid.
If you’ve run out of space at the bottom of the page, select the Artboard tool, zoom out enough to see the lower edge, and drag that edge down.
I often make the artboard generously long, then pull the bottom back up when the layout is finished. It saves repeatedly extending it every time another section needs space.
Return to actual size before drawing the thumbnails.
Avoid changing the wrong object’s colour
Before setting your rectangle’s colours, check what’s selected. If a text label is still selected, choosing an off-white fill will recolour the text instead. It hasn’t disappeared; it’s just become very difficult to see.
If that happens, use Edit > Undo. Then switch to the Selection tool and click a blank area to deselect everything before drawing the new rectangle.
6. Build a reusable image placeholder

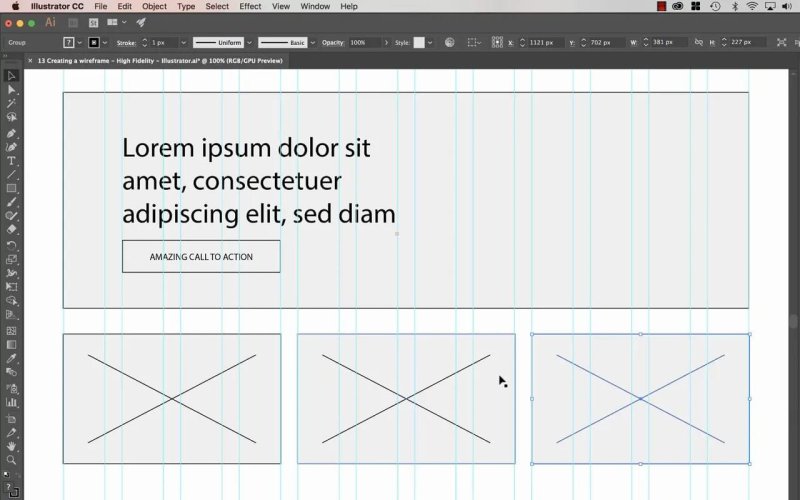

Draw the first thumbnail rectangle across four columns. Use the Eyedropper tool to apply the same pale fill and thin outline as the rest of the wireframe.
A plain rectangle could be mistaken for a button or another content box. To show that it represents an image, put a diagonal cross inside it.
Create matching diagonal lines
Select the Line Segment tool and draw one diagonal across the rectangle.
Switch to the Selection tool, deselect everything, then select only that line.
Copy and paste the line.
Choose Object > Transform > Reflect.
Select Horizontal and confirm to flip the duplicate.
Move the reflected line into the rectangle.
Select the rectangle and both lines, then use the horizontal and vertical centre alignment controls.
Reflecting the first line is easier than drawing the second one by eye and trying to match the angle. The alignment controls then bring all three pieces neatly together.
Group and duplicate the placeholder
Select the rectangle and both diagonals, then choose Object > Group. Now the placeholder moves as one unit.
Hold Alt, or Option on Mac, while dragging the group to create a duplicate. Hold Shift as well during the drag to keep the movement straight.
Repeat for the third thumbnail, placing each copy across its own four-column span and leaving the gutters between them.
Each grouped image placeholder spans four columns, creating a tidy row of three.
Keep image symbols simple
The diagonal cross is usually enough. If you prefer the familiar landscape-style image symbol, you can sketch mountain peaks with the Line Segment tool and add a small circle using the Ellipse tool, found under the Rectangle tool.
Adjust the stroke width if needed to make the symbol consistent. There’s no drama either way, but extra detail isn’t necessary just to communicate “an image goes here”.
Check the layout before adding more detail
You now have the main desktop structure: logo, navigation, hero headline, call-to-action button and three thumbnails.
Return to actual size, hide the guides briefly, and check that the proportions feel sensible. Turn the guides back on to check alignment. The remaining page content can be built with the same rectangles, text boxes and duplicated groups.
A tablet layout is a separate next step. For now, keep this wireframe clear and consistent. It doesn’t need to look flashy; it needs to explain the page.
Key terms
Wireframe
A simplified page layout made from placeholders and text. Here, it shows the position and relative size of the main website elements.
Page furniture
A term borrowed from print for elements that furnish the page. In this layout, it’s a useful way to refer to the structural boxes and labels.
Gutter
The space between columns in a grid. Elements can span multiple columns, but their outer edges should align with column edges rather than end inside a gutter.
Hero section
The large introductory area beneath the header. It contains the main message and, in this example, a call-to-action button.
Fixed-width text box
A text area created by clicking and dragging with the Type tool. Text wraps when it reaches the box’s right-hand edge.
Call to action
A prompt to take a next step, such as buying something or making contact. In this wireframe, it is represented by a labelled button beneath the headline.
FAQs
How do I show or hide column guides in Illustrator?
Use Command + semicolon on Mac or Ctrl + semicolon on PC. You can also use View > Guides > Hide Guides to hide them.
How do I make headline text wrap inside a box?
Click and drag with the Type tool to create a fixed-width text box, rather than clicking once. Text will wrap at the right-hand edge of the box.
How do I give all my wireframe boxes the same appearance?
Select the box you want to change, choose the Eyedropper tool, and click a correctly styled box. This copies its appearance to the selected object.
How do I duplicate an image placeholder without losing alignment?
Group the rectangle and its diagonal lines first. Hold Alt, or Option on Mac, while dragging to duplicate it, and hold Shift during the drag to keep the movement straight.
