How To Crop Images Inside Of Text In Adobe InDesign CC

How to Crop Images Inside Shapes and Text in Adobe InDesign

InDesign makes it surprisingly easy to crop an image into something more interesting than a rectangle. The basic workflow stays the same regardless of whether you are using a circle, a star, a custom illustration, or a word.

1. Create or select the shape that will become the image frame.

2. Place an image and position it over the area where you want it to appear.

3. Choose Edit > Cut.

4. Select the shape or outlined text.

5. Choose Edit > Paste Into.

The image is now contained within that shape. It does not really matter how complicated the shape is. If InDesign can treat it as a frame, you can paste an image into it.

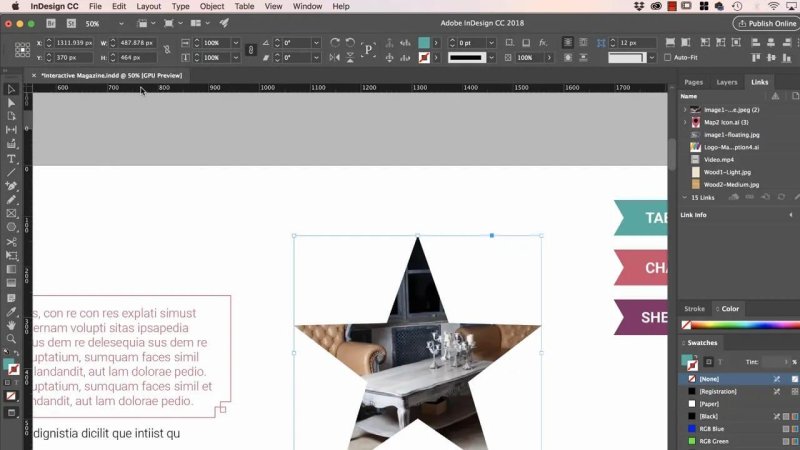

Crop an Image Inside a Star

Start with the Polygon Tool. Click or double click the tool to open its settings, then set it up with five sides and a star inset of 50. That gives you the familiar classic star shape.

Hold Shift while dragging to keep the star nicely proportioned. Once it is on the page, place an image anywhere nearby, then drag it over the star so the part you want is sitting roughly where it needs to be.

Now cut the image, select the star, and use Edit > Paste Into. Job done: the furniture photograph is cropped cleanly inside the star.

Do not get too caught up in making the source image exactly the same size as the shape before cutting it. Get it approximately over the target first, then paste it into the frame.

Build a Custom Shape With the Pen Tool

A star is useful, but the fun part is that you are not limited to InDesign's default shapes. You can make a custom frame from something as simple as a circle.

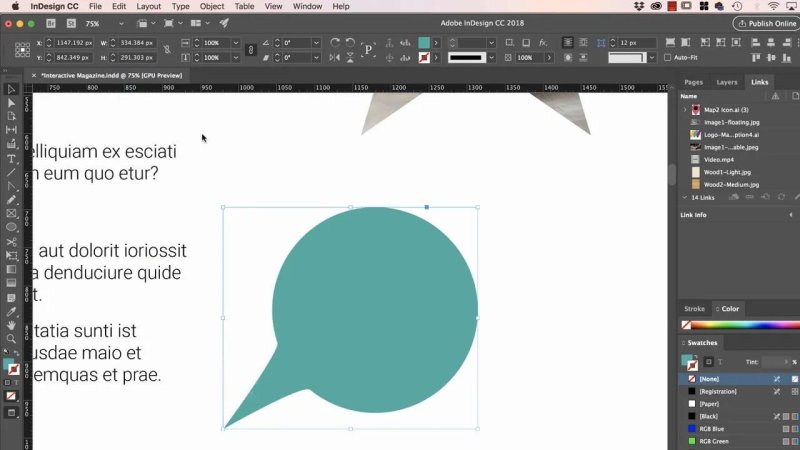

Turn a Circle Into a Speech Bubble

Draw a circle with the Ellipse Tool. Then choose the regular Pen Tool and click on the edge of the circle to add a few anchor points. Add two points where you want the bubble tail to begin, plus another point between them.

Switch to the Direct Selection Tool, also known as the white arrow. Select the middle anchor point and pull it outward. This creates the little blob that will become the bubble tail.

Selecting a single point can be a bit fiddly when lots of anchor points are visible. Click away, then move back over the approximate position of the point and click carefully. It is one of those tiny InDesign moments where patience pays off.

At this stage, the tail can look rounded and blob-like. Go back to the Pen Tool options and choose Convert Direction Point Tool. Click the relevant point to remove its rounded handles and turn it into a sharper point.

That is enough to create a very usable speech bubble shape. Place your image over it, cut the image, select the bubble, and choose Edit > Paste Into.

Use Shapes From Illustrator or Other Assets

You do not have to draw every custom frame in InDesign. If Illustrator is where you are happiest drawing, create the shape there, copy it, and paste it into InDesign. It can then become an image frame using the same cut and paste-into workflow.

Downloaded icons and marketplace assets can work too. If an imported icon contains several pieces, you may need to ungroup it before it behaves as the single shape you want.

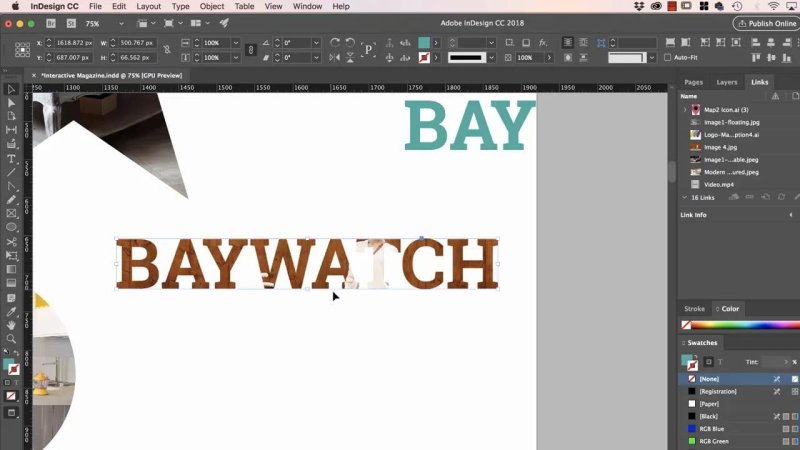

Crop an Image Inside Text

Putting an image inside text is the big one. It is brilliant for poster headlines, magazine covers, feature spreads, and anywhere a large word deserves more visual energy than a flat colour.

Begin by creating a text frame and typing the word or headline. Make the type large enough that the photograph will have room to show through. A bold, chunky typeface works particularly well because it gives the image more surface area to play with.

For a bit of old-school beach-drama energy, a large word such as BAYWATCH is perfect. The important bit is not the word itself. It is the big, bold text treatment.

Outline the Type Before Pasting

Text is not automatically an image frame, so it needs one important conversion. Select the text and choose Type > Create Outlines.

This turns the letters into vector shapes that look like text. After that, you cannot edit the wording with the Type Tool anymore, so make a duplicate before outlining if you think you might need to adjust the copy later.

• Keep one editable text version as a backup.

• Use the duplicate for Type > Create Outlines.

• Paste the image into the outlined word.

With the outlined text selected, bring in an image. If Replace Selected Item is enabled, InDesign may place it directly into the selected object. If not, no drama: place the image over the outlined word, cut it, select the word, and use Edit > Paste Into.

A Quick Checklist for Advanced Image Cropping

When cropping images inside shapes or text in InDesign, keep this little checklist handy:

• Create the destination frame first. Use a built-in shape, a custom Pen Tool shape, an Illustrator object, or outlined text.

• Position the image over the target. Get the useful part of the image roughly where you want it.

• Cut the image. Choose Edit > Cut.

• Select the frame. Make sure you have selected the shape or outlined text, not the image.

• Use Edit > Paste Into. This is the whole trick.

• Duplicate live text before outlining it. Outlined type cannot be edited as text.

Once you have got this workflow into your muscle memory, you can stop thinking of shapes as just coloured objects. They become windows for photography, patterns, and all sorts of visual goodness.

FAQ's

Can I paste an image into any InDesign shape?

Yes. Draw or import the shape, place the image over it, cut the image, select the shape, and choose Edit > Paste Into.

Why can I not edit text after putting an image inside it?

The text has to be converted with Type > Create Outlines before it can act as an image frame. Creating outlines turns the letters into shapes rather than editable text.

Should I keep a copy of my original text before creating outlines?

Yes. Duplicate the text first so you have an editable backup in case the wording, typeface, or size needs changing later.

Can I use an Illustrator shape as an image frame in InDesign?

Yes. Copy the shape from Illustrator and paste it into InDesign, then use the same Edit > Paste Into technique. Imported icon assets may need ungrouping first.
