Optical Margin Alignment In Adobe InDesign CC

How to Use Optical Margin Alignment in Adobe InDesign

Text can be technically aligned to a column edge and still look a little bit wrong. This happens because not every character has the same visual weight at its outer edge.

A hyphen, bullet or quotation mark can make a line appear to duck in, even when it is perfectly positioned within the text frame. The same goes for letters such as W, Y and V. Their angled forms create a big pocket of negative space at the edge, making the heading appear indented.

Optical Margin Alignment solves that little visual problem. Rather than forcing every character to remain inside the text frame, it lets specific characters protrude into the margin. The result is a cleaner, more visually consistent edge.

It is not about mathematical alignment. It is about making the type look aligned.

How to Turn On Optical Margin Alignment

The setting lives in InDesign's Story panel, and it is very simple once you know where it is.

1. Select the text frame with the Selection tool, the black arrow.

2. Go to Window > Type & Tables > Story.

3. In the Story panel, enable Optical Margin Alignment.

4. Adjust the size value if necessary to suit the type you are working with.

That is it. There is only one main setting in this panel, but it can make a surprising difference to a layout.

Check the Difference Against the Column Edge

To see what is going on, turn on frame edges by pressing W. With Optical Margin Alignment turned off, all text remains strictly inside the boundaries of the column.

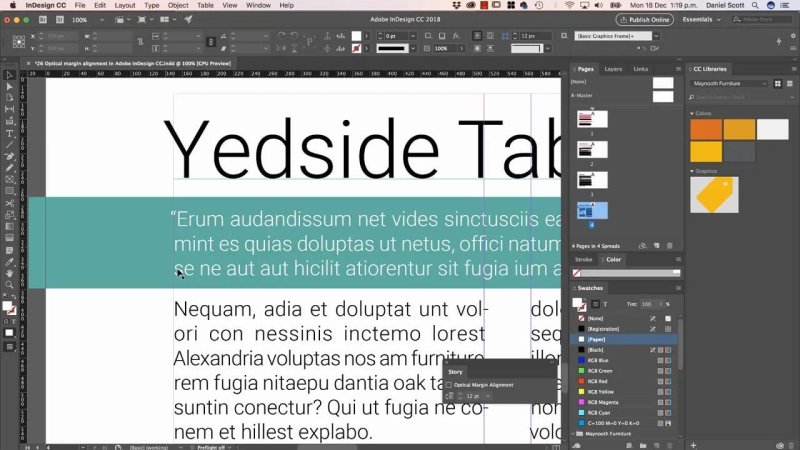

Once it is enabled, some characters will move slightly beyond that edge. Hyphens at the end of a justified line can stick out to the right, while bullets and opening quotation marks can hang to the left.

That tiny overshoot is intentional. It stops these small marks from making the text block feel uneven.

Why Headings Often Need Optical Margin Alignment

Large type makes this issue much more obvious. A heading beginning with a rounded or vertical character may appear to sit nicely on the edge, but one beginning with a W, Y or V can look as though it has been pushed inward.

Technically, the letter is aligned. Visually, though, the diagonal strokes leave empty space at the start of the word. Optical Margin Alignment lets that letter hang out far enough that the heading reads as aligned with the rest of the layout.

Set the Optical Margin Size to Match Your Type

The value in the Story panel controls how strongly InDesign applies the effect. There is no single magic number because the appropriate setting depends on the size of the text.

For a large heading, use a value that is close to its point size. For example, a heading around 90 pt may need a much higher setting, such as 72, to create a strong enough visual adjustment.

For body copy, the setting should be closer to the body text size. If the text is 12 pt, a value around 12 is a sensible place to start.

The key is to match the setting to the scale of the type, then judge it with your eyes. If the effect is too subtle, increase it. If it starts looking exaggerated, pull it back.

Where Optical Margin Alignment Works Best

This feature is especially useful in the places where typography often looks slightly off despite everything being correctly built.

• Justified body text: end-of-line hyphens can hang outside the right edge rather than making a line look short.

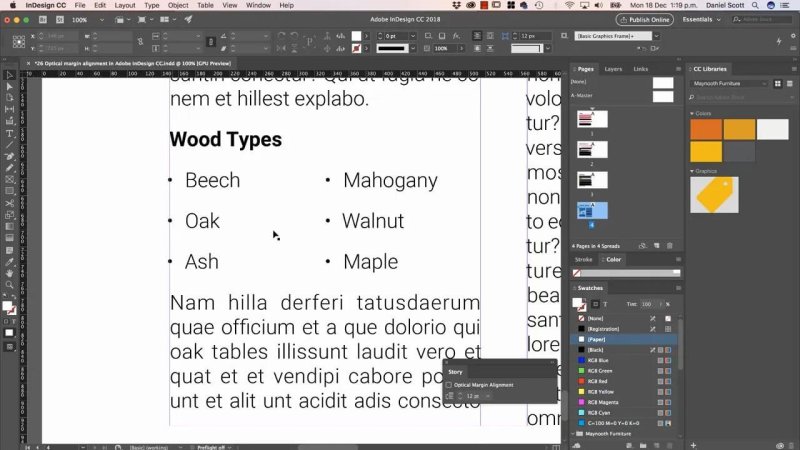

• Bulleted lists: bullets can sit outside the text block so the text itself aligns cleanly.

• Pull quotes: opening quotation marks can hang into the margin instead of creating an apparent indent.

• Large headings: letters with diagonal outer forms, including W, Y and V, can align more naturally.

• Editorial layouts: multi-column pages benefit from the neater visual edges this creates.

Quotation marks, bullets and hyphens may be small, but they have a real effect on how polished a page feels. This is one of those quiet typographic improvements that is easy to miss when absent and hard to unsee once it is in place.

Make It Part of Your Body Copy Workflow

If you regularly use the same kind of body text, build Optical Margin Alignment into your paragraph style workflow. That way, the adjustment comes along automatically whenever that body copy style is used.

It is a small setup step, but it keeps the treatment consistent across a document and removes one more thing to remember when formatting pages.

And if these tiny alignment details are not something you care about, that is fine too. But when you are working on editorial design, typography-heavy documents or a layout that needs to feel properly finished, Optical Margin Alignment is a very easy win.

FAQs

What is Optical Margin Alignment in InDesign?

Optical Margin Alignment is a Story panel setting that allows selected punctuation and character shapes to extend slightly beyond a text frame edge, creating a visually straighter margin.

Where is the Optical Margin Alignment setting in InDesign?

Select a text frame, then open the Story panel through Window > Type & Tables > Story. Enable Optical Margin Alignment from that panel.

Should the Optical Margin Alignment value match my font size?

It is a good starting point. Use a higher value for large headings and a value closer to the point size for body copy, then adjust until the page looks right.

Does Optical Margin Alignment work with bullets and quotation marks?

Yes. Bullets, hyphens and quotation marks are particularly useful candidates because they can otherwise make a text edge appear uneven.
